Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Annealed Hairline 3/4 Hard Tempered

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled overview

301 stainless Coil and slit coil, is slightly lower in chromium and nickel content than Type 302. The lower nickel content causes Type 301 to work harden more rapidly and retain greater ductility than the same temper of Type 302.

301 is available in regular or high silicon and many temper designations such as quarter hard, half hard,
three-quarter hard, full hard, extra full hard, super full hard, 270,000 min tensile, high yield and others.
xinzheng has the 301 strip ,coil product you need

SS 301 301 SI is Available in Coil, Sheet and Strips

Hot Rolled Plates & Coil, Cold Rolled Coil & Sheets

PRODUCT FORMS:

Coil , Sheet, plate , Strip, pipe ,tube ,bar ,profiles

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Products Specification and Dimension Ranges

Specififcation:

301 Stainless Strip, Coil, Foil & Wire, AMS 5901 (ANN), AMS 5902 (3/4H), AMS 5517 (1/4H),

AMS 5518 (1/2H), AMS 5519 (FH), ASTM A666

Dimension Ranges:

Coil Slitting Mill Capability :

Striping processing, commonly known as “slitting “, refers to the winding of a metal coil by unwinding, slitting, leveling, winding, and processing into a desired width. Slitting processing is a basic metal processing technology that combines high-quality equipment with skilled craftsmanship. it can be obtained with strict tolerance, perfect surface control , safe packaging as well as fine transportation.

• Max thickness: 18 mm
• Min thickness: 0.1 mm
• Max width: 2150 mm
• Min width: 8 mm
• Width tolerance: 0 – 0.1 mm
• Burr: T<1mm: ≤0.05mm; T≥1mm: ≤5%T

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Application

​

aircraft structural parts
trailer bodies
utensils
architectural and automotive rim
roof drainage products
conveyor belts
variety of industrial applications.

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Technical datasheet

CHEMISTRY TYPICAL

Carbon: 0.15 max Phosphorus: 0.060 max Silicon: 1.00 max Nickel: 1.50-3.50 Chromium: 15.50-17.50 Manganese: 6.5-9.0 Copper: 2.00-4.00 Molybdenum: 1.00 max Sulfur: 0.030 max Nitrogen: 0.05-0.25 Iron: Balance

PHYSICAL PROPERTIES

Density: 0.282 lb/in3 7.81 g/cm3 Electrical Resistivity: ohm-inch (microhms-m): 30.039 (0.763) Mean Specific Heat: BTU/lb-°F (J/g-°C): At 73 - 212 °F (23 - 100 °C): 0.119 (.511)

Thermal Conductivity: BTU-in/hr-ft2-°F (W/m•K) At 122 °F (50 °C): 93.79 (13.52) At 212 °F (100 °C): 104.02 (14.99) At 392 °F (200 °C): 118.31 (17.00) At 572 °F (300 °C): 131.18 (18.91) At 752 °F (400 °C): 142.44 (20.53) At 932 °F (500 °C): 154.43 (22.26)

Mean Coefficient of Thermal Expansion:

µin/in-°F (µm/m-°C) 77 -212 °F (25-100 °C}: 9.50 (17.1)

77 -302 °F (25-150 °C}: 9.61 (17.3) 77 -392 °F (25 -200 °C): 9.77 (17.6) 77 -482 °F (25-250 °C): 9.94 (17.9) 77 -572 °F (25 -300 °C): 10.05 (18.1) 77 -662 °F (25-350 °C): 10.16 (18.3) 77 -752 °F (25 -400 °C): 10.33 (18.6) 77 -842 °F (25-450 °C): 10.44 (18.8) 77 -932 °F (25 -500 °C): 10.55 (19.0) 77 -1022 °F (25 -550 °C): 10.66 (19.2) 77 -1112 °F (25 -600 °C): 10.77 (19.4) 77 -1202 °F (25 -650 °C): 10.83 (19.5) 77 -1292 °F (25 -700 °C): 10.77 (19.4) Modulus of Elasticity: KSI (MPa) 29 x 103 (200 x 103) in tension Magnetic Permeability, H = 200 Oersteds: Annealed: 1.02 max*

Alloy 204CU is slightly after cold working but can be minimized. Melting Range: 2552 -2642 °F (1400 -1450 °C)

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Equivalent And similar Grades

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Products display and Package Details

Packaging (details)

1. Pallets with several coils

1.1 Coils packed eye to sky on one-way pallet with spacers without pallet cover.
1.2 Coils packed eye to sky on one-way pallet with spacers and covered with shrink-wrap.
1.3 Coils packed eye to sky on one-way pallet with spacers and covered with paper hood.
1.4 Coils packed eye to sky on one-way pallet with spacers and covered with wooden box.
1.5 Coils packed eye to sky on pallet with spacers without cover.
1.6 Coils packed eye to sky on pallet with spacers and shrink wrap.
1.7 Coils packed eye to sky on pallet with spacers and paper hood.

2. Pallet with single coil

2.1 Coil packed eye to sky on one-way-pallet without cover.
2.2 Coil packed eye to sky on one-way-pallet with shrink wrap.
2.3 Coil packed eye to sky on one-way-pallet with paper hood.
2.4 Coil packed eye to sky on one-way-pallet with wooden box.
2.5 Coil packed eye to sky on pallet without cover.
2.6 Coil packed eye to sky on pallet with shrink wrap.
2.7 Coil packed eye to sky on pallet with paper hood.

3. Pallets with multistrip

3.1 Multistrip on one-way pallet.

4. Coils standing, unpacked

5. Pallets with spools, standing with horizontal axe

5.1 Wooden spool on one-way pallet standing with horizontal (eye to the wall) axe.
5.2 Cardboard spool (cardboard core and cardboard sheet) on one-way pallet standing (eye to the wall).

6. Cut lengths

6.1 Bundled.
6.2 On wooden boards.
6.3 In wooden boxes.

7. Special customer requests for packaging

7.1 Weight per packing unit.
7.2 Design and size of pallet.
7.3 Number and kind of coil tying.
7.4 Number and kind of interleaving spacer strips.
7.5 Corrosion protection.
7.6 Kind of wood and wood protection used.
7.7 Marking of material and packing.

FAQ

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?

A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you

can choose other ports according to your needs.

Q: About product prices?

A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: How long does your delivery time take?

A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely

large or special circumstances occur.

Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some

of the plants are not open to the public.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified

products will be destroyed.

Q: How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation

wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,

we will reply to your inquiry during the next working day.

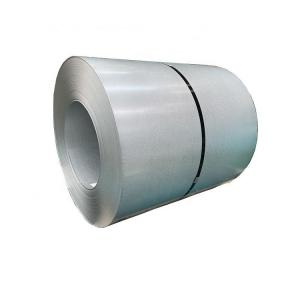

Type 301 301SI Stainless Steel Strip Coil UNS S30116 Cold Rolled Annealed Hairline 3/4 Hard Tempered Images
