304 PVD Decorativ Stainless Steel Color Sheet Cold Rolled Embossed overview .
The use of stainless steel in building designs and construction is very popular. It can also be used in the construction of machinery and exercise machines, as well as in the creation of artworks. In many of these applications there is a need for stainless steel that is not plain and flat; a certain amount of decoration and patterning is required. This is why Steel Color produces embossed stainless steel that can add an extra dimension to building and design projects.
All of the stainless steel sheets produced by Steel Color are manufactured to the highest standards, using quality materials. This means that the final product can be relied upon to be durable and strong. The embossed stainless steel products from Steel Color are produced using a highly effective cold rolling process. The depth of the embossing depends on the depth of the steel sheet used. The end result is a great looking embossed stainless steel that has all the strength and durability that is expected from a high quality stainless steel product. Color can also be added to the embossed stainless steel from Steel Color, to create an extra element of style.
Embossed stainless steel can be used as cladding on the walls of structures, providing protection and an attractive decorative feature. It can also be used to create internal decorative features, such as splashbacks. Companies may also want to incorporate embossed stainless steel into the signage at the entrance to their offices.
We provides high quality embossed stainless steel to use in a variety of commercial, domestic and design situations. The steel is manufactured and embossed to a high standard which means that it can be relied upon completely.
304 PVD Decorativ Stainless Steel Color Sheet Cold Rolled Embossed Specification and Dimension Ranges
Specifications of Colored Stainless Steel Sheet:
1) Thickness: 0.4 - 3.0 mm
2) Normal Width:
a) 1,000mm
b) 1,219mm
c) Customized, but not more than 1,219mm
3) Length scale: 100 - 5,000mm
4) Cut precision: length, width ±0.5mm
5) Cater-corner error: <0.5mm
6) Product materials: SUS304, SUS316, SUS430, SUS439, etc.
7) Common specification: 1000mm*2000mm ,1219mm*2438mm
304 PVD Decorativ Stainless Steel Color Sheet Cold Rolled Embossed Application
1. Building applications
a) Column covers
b) Elevator doors
c) Escalators and moving walk cladding
d) Ornamental and decorative cladding
e) Hotel entrances
f) Architectural trims and accents
g) Telephone booth
h) More
2. Home fixture applications:
a) Kitchen appliances
b) Cabinets
c) Doors
d) Mail boxes
e) More
3. Industrial fixtures applications:
a) Medical instruments
b) Electrical products
c) Refrigerator
d) Hardware
e) More
304 PVD Decorativ Stainless Steel Color Sheet Cold Rolled Embossed Equivalent material
| AISI 304 equivalents |
| ASTM A887 Grade S30460 | EN X5CrNi18-10 | ASTM F594 Grade S30500 |
| ASTM A887 Grade S30461 | EN 1.4301 | ASTM F594 Grade Alloy Group 1 |
| ASTM A887 Grade S30462 | ISO A2 | ASTM F738M Grade S30500 |
| ASTM A887 Grade S30463 | GOST 08Ch18N10 | ASTM F738M Grade Alloy Group A1 |
| ASTM A887 Grade S30464 | GB 0Cr18Ni9 | ASTM F836M Grade S30500 |
| ASTM A887 Grade S30465 | UNS S30400 | ASTM F836M Grade Alloy Group A1 |
| ASTM A887 Grade S30466 | ASTM A193 Grade B8P Class 1D | ASTM F837 Grade S30500 |
| ASTM A887 Grade S30467 | ASTM A193 Grade B8P Class 1 | ASTM F837 Grade Property Class A1 |
| DIN 1.4301 | ASTM A193 Grade B8P Class 2 | ASTM F879 Grade S30500 |
| DIN X 5 CrNi 18 9 | ASTM A193 Grade B8PA Class 1A | ASTM F880 Grade S30500 |
| DIN X5CrNi18-10 | ASTM A194 Grade 8P | DIN 1.4314 |
| AFNOR Z6CN18-09 | ASTM A194 Grade 8PA | AFNOR 9160/C 109 |
| AFNOR Z7CN18-09 | ASTM A240 Grade S30500 | AFNOR 9160C411 |
| BS 304S15 | ASTM A249 Grade TP305 | AFNOR Z 12 CN 18-10 |
| BS 304S31 | ASTM A276 Grade S30500 | AISI 305 |
| UNI X5CrNi1810 | ASTM A313 Grade S30500 | SAE 305 |
| SS 2332 | ASTM A314 Grade S30500 | EN FE-PA 11 |
| UNE F.3551 | ASTM A320 Grade B8P Class 1 | EN FE-PA 12 |
| SAE 304 | ASTM A320 Grade B8P Class 2 | EN 1.4314 |
| JIS SUS304 | ASTM A320 Grade B8PA Class 1A | DIN 1.4350 |
| JIS SUS304TBS | ASTM A368 Grade 305 | DIN X5CrNi18-9 |
| JIS SUS304TPD | ASTM A473 Grade 305 | AFNOR Z6CN18.09 |
| JIS SUS304TP | ASTM A478 Grade 305 | SS 2333 |
| JIS SUS304TPY | ASTM A492 Grade S30500 | EN 1.4350 |
| JIS SUS304TB | ASTM A493 Grade S30500 | |
| JIS SUS304TF | ASTM A511 Grade MT305 | |
| JIS SUS304TKA | ASTM A554 Grade MT305 | |
| JIS SUS304TKC | ASTM A580 Grade S30500 | |
| JIS SUSF304 | ASTM A959 Grade S30500 | |
| | ASTM F593 Grade S30500 | |
| | ASTM F593 Grade Alloy Group 1 | |
304 / 304L / 304H Stainless steel perforated sheet For Metal screen Technical datasheet
Key Properties
These properties are specified for flat rolled product (plate, sheet, and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.
Composition
| Grade | | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 304 | min.
max. | -
0.08 | -
2.0 | -
0.75 | -
0.045 | -
0.030 | 18.0
20.0 | - | 8.0
10.5 | -
0.10 |
| 304L | min.
max. | -
0.030 | -
2.0 | -
0.75 | -
0.045 | -
0.030 | 18.0
20.0 | - | 8.0
12.0 | -
0.10 |
| 304H | min.
max. | 0.04
0.10 | -
2.0 | -
0.75 | -0.045 | -
0.030 | 18.0
20.0 | - | 8.0
10.5 | - |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness |
| Rockwell B (HR B) max | Brinell (HB) max |
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
304H also requires a grain size of ASTM No 7 or coarser.
Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Electrical Resistivity (nΩ.m) |
| 0-100 °C | 0-315 °C | 0-538 °C | at 100 °C | at 500 °C |
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |

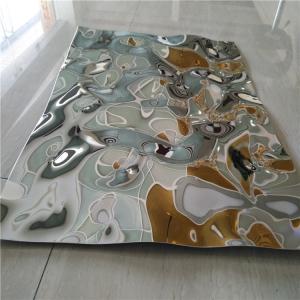

304 PVD Decorativ Stainless Steel Color Sheet Cold Rolled Embossed Products display and Package Details
General Q and A Questions
Q: Would you provide samples For free?
A: Yes. with on stock specification We provide samples For Free. Freight charge collect
Q: What information should i provide to source for the right products?
A: Material grade, width, thickness, coating and Purchase quantity, Expected lead time, etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed. We provide All Original Mill test certificate and support third party inspection.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
